Car lifts
We are authorized dealers for Lift King car lifts and garage accessories. Next day delivery available on our hoists.

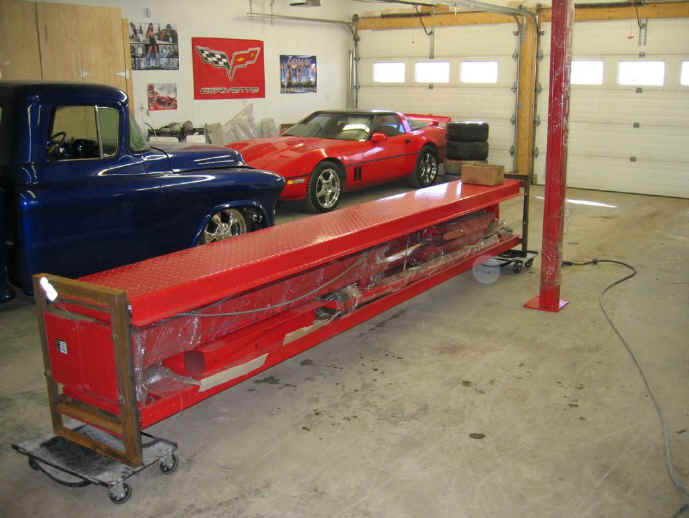

Below is how the hoist is delivered, you can pick it up from the warehouse in Calgary, or our shop in Innisfail. You can assemble it your self or it can be put together for you in your garage. This is the hoist we use - come see it in person before you buy.

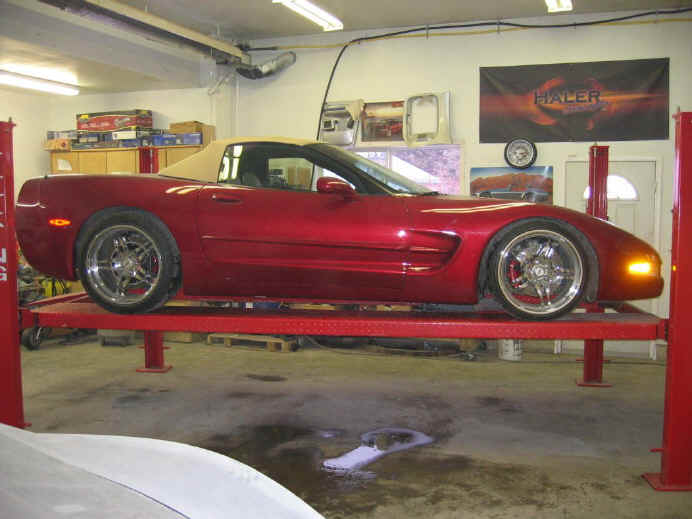

... and a couple hours later here it is together.
Lifting capacity | 8,000 LB. |
Power unit electrical requirement | 110/220 Volt |
Shipping weight | 1650 lbs. |
Speed of rise | 75 seconds |
Lifting height in top lock position (Height to top of runway) | 74” |
Clearance under lift in top lock position (Height to bottom of runway) | 71” |
Length of runway | 170" |
Length of approach ramp | 36” |
Height of columns (overall height) |
88” |
Size of columns | 6.”x 4” |
Runway width | 19” |
Width between runways | 37” |
Measurement to outside both runways | 75” |
Clearance between columns | 93" |
Overall width (with motor) | 117” |
Overall width (without motor) | 106” |
Motor/Structure warranty Lock Heights 17",31",36",41",46",51",56",61",66"71" |
5 yr/Life |
Lifting capacity | 8,000 LB. |
Power unit electrical requirement | 110/220 Volt |
Shipping weight | 1857 lbs. |
Speed of rise | 75 seconds |
Lifting height in top lock position (Height to top of runway) | 86” |
Clearance under lift in top lock position (Height to bottom of runway) | 81” |
Length of runway | 192" |
Length of approach ramp | 37” |
Height of columns (overall height) |
98” |
Size of columns | 6.”x 4” |
Runway width | 19” |
Width between runways | 37” |
Measurement to outside both runways | 75” |
Clearance between columns | 99" |
Overall width (with motor) | 123” |
Overall width (without motor) | 112” |
Motor/Structure warranty Lock Heights17",32",38",43",49",54",59",65",70"75"81" |
5 yr/Life
|
